Riverside expanded rapidly after the 1880s rail connection, pushing construction into the Santa Ana River floodplain. That flat terrain meant deep basements and underground parking became standard for downtown projects. Our diaphragm wall design work here draws on decades of local soil data. We know the alluvial sands, silts, and gravels that dominate the upper 20 meters. Before we finalize a wall section, we always cross-check against historical records of channel migration. That context helps us predict where loose lenses might appear. For projects requiring retention of adjacent structures, we integrate excavaciones profundas into the analysis to ensure stability throughout the dig.
Forty deep excavations completed in the Inland Empire since 2015. Local data drives every diaphragm wall design we deliver in Riverside.
Method and coverage
Groundwater sits between 3 and 6 meters deep across most of Riverside, varying with season and distance to the river. That high phreatic surface drives our design choices. We specify watertight joints and thicker panels where needed. In seismic Zone 4, per ASCE 7, the wall must resist both lateral earth pressure and inertial loads from the soil mass. We run time-history analyses when the building height exceeds 10 stories. For walls retaining existing footings, we couple diaphragm wall design with asentamiento diferencial calculations to keep differential movements below 25 mm. The geotechnical team here has completed over forty deep excavations in the Inland Empire since 2015.

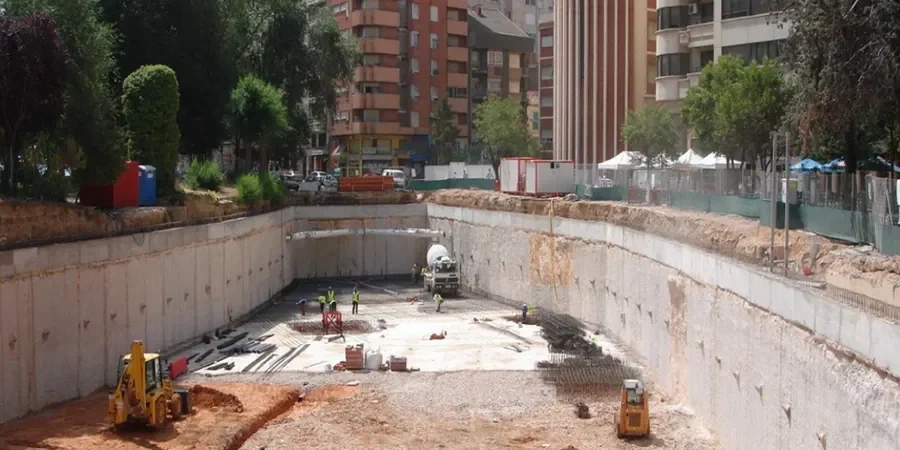

Technical reference image — Riverside
Regional considerations
We bring a crane-mounted hydraulic grab to Riverside sites. It bites into the alluvium, excavating panels 2.8 m wide on average. The operator monitors slurry level constantly. A drop means a lost trench — collapse risk is real in loose sands. We have seen panels cave near the Riverside downtown rail corridor, where old fills and utility trenches create weak zones. That is why our diaphragm wall design always includes at least two verification boreholes per panel alignment. No shortcuts on the ground truth.
We calculate reinforcement, panel layout, and joint detailing for cast-in-place concrete walls. Our designs meet IBC 2018 seismic provisions and handle hydrostatic pressures up to 60 kPa.
02
Construction Support & Monitoring
We review contractor submittals, inspect trench stability, and verify concrete placement. Our team provides on-site quality control during panel excavation and concreting.
Standards that apply
ASCE 7-16 (Minimum Design Loads for Buildings), IBC 2018 (International Building Code), ACI 318-19 (Building Code Requirements for Concrete), ASTM D1586-18 (Standard Test Method for SPT)
Q&A
What is the typical depth range for diaphragm walls in Riverside?
Most walls in Riverside go between 15 and 25 meters deep. Deeper walls, up to 35 meters, are needed for multi-level basements near the Santa Ana River. Gravel layers below that depth make trenching difficult with conventional grabs.
How does high groundwater affect diaphragm wall design locally?
High groundwater means the wall must resist significant hydrostatic pressure. We design thicker panels and waterstops at every joint. During excavation, bentonite slurry density is adjusted to prevent trench collapse. We also check uplift stability during the dewatering phase.
What is the cost range for a diaphragm wall design study in Riverside?
A complete diaphragm wall design study for a typical Riverside project costs between US$1,630 and US$6,540. The final amount depends on wall length, depth, number of panels, and seismic analysis requirements. Contact us for a scope-specific quote.
