Riverside sits at 827 feet above sea level in the Inland Empire, a region underlain by deep alluvial basins from the Santa Ana River. These sedimentary deposits can amplify earthquake waves by a factor of 2 to 5 compared to bedrock, a phenomenon documented after the 1992 Landers and 1999 Hector Mine earthquakes. A proper seismic amplification analysis in Riverside evaluates how local soil columns modify ground motion before designing any structure. The analysis combines field geophysics, such as MASW surveys, with laboratory soil classification to define the site class per ASCE 7-22. Without this study, a building on deep sand and gravel layers might experience shaking far beyond what code minimums assume.
Alluvial basins in Riverside can amplify ground motion up to 5 times relative to bedrock, making site-specific analysis essential for code-compliant design.
Method and coverage
The climate in Riverside is semi-arid with hot summers, which keeps near-surface soils dry and stiff. But the deeper alluvial sequence — interbedded sands, silts, and clays — changes stiffness drastically with depth. A typical seismic amplification analysis here starts with a MASW survey to measure shear-wave velocity (VS30) across the site, followed by borehole sampling for cyclic triaxial testing. The team then runs 1D equivalent-linear or nonlinear ground response models using DEEPSOIL or STRATA software. Results include acceleration response spectra and amplification factors for different periods. For sites near the San Jacinto fault zone, we also perform microzonification studies to capture basin-edge effects that can trap long-period waves. Each analysis is calibrated against recorded ground motions from regional seismic networks.

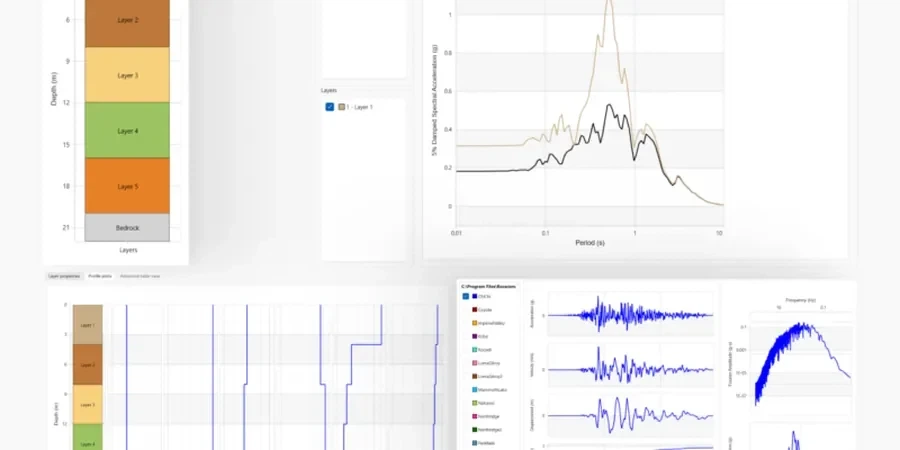

Technical reference image — Riverside
Regional considerations
A common mistake among developers in the Inland Empire is assuming all sites in Riverside qualify as Site Class C based on regional maps. That shortcut ignores localized soft layers — paleochannels filled with loose sand or old lakebed clays — that can push a site into Class D or E. When the 2021 San Bernardino earthquake (M4.9) rattled Riverside, structures on those soft pockets experienced 50% higher spectral accelerations than adjacent buildings on stiff alluvium. A seismic amplification analysis in Riverside eliminates that guesswork. It provides the exact site coefficients Fa and Fv needed for the equivalent lateral force procedure, preventing both under-design and costly over-design.
C (very dense soil), D (stiff soil), or E (soft soil)
Predominant period of soil column
0.3 – 1.5 seconds
Number of ground motion input records
Minimum 5 pairs per ASCE 7-22
Nonlinear soil model type
Equivalent-linear or fully nonlinear (e.g., DEEPSOIL, FLAC)
Complementary services
01
Level 1 – Screening & Site Class Determination
Desk study using existing borehole logs and regional VS30 maps to assign ASCE 7 site class. Includes a reconnaissance visit to confirm surface conditions. Ideal for early planning or low-risk structures.
02
Level 2 – Field Geophysics & 1D Ground Response
MASW or ReMi survey to measure shear-wave velocity profile, plus downhole seismic logging in one borehole. We run equivalent-linear ground response analysis with 5 input motions. Results include design response spectra and amplification functions.
03
Level 3 – Full Nonlinear Site Response & Liquefaction Screening
Two or more boreholes with SPT and cyclic triaxial testing. Nonlinear time-history analysis using FLAC or DEEPSOIL with 11 input motions. Includes liquefaction triggering assessment per Youd-Idriss 2001. Recommended for hospitals, schools, and essential facilities.
Standards that apply
ASCE 7-22 (Minimum Design Loads and Associated Criteria for Buildings and Other Structures), ASTM D4428/D4428M-21 (Standard Test Methods for Crosshole Seismic Testing), California Building Code (CBC) 2022, Chapter 16A – Seismic Design
Q&A
What is seismic amplification analysis and why is it needed in Riverside?
It is a site-specific study that calculates how local soil layers modify earthquake ground motion. In Riverside, deep alluvial basins can amplify shaking by 2 to 5 times, so code-default site classes may underestimate actual demands. The analysis provides the correct site coefficients (Fa, Fv) and a site-specific response spectrum for structural design.
How much does a seismic amplification analysis cost in Riverside?
A typical Level 2 study (MASW + 1D ground response) ranges between US$960 and US$1.880 depending on site size, number of boreholes, and required input motions. Level 1 screening starts around US$960, while Level 3 full nonlinear analysis can exceed US$1.880. Contact us for a scope-specific quote.
Which site classes are most common in Riverside?
Most of the city lies on Site Class C (very dense soil and soft rock) or D (stiff soil). However, along the Santa Ana River floodplain and in areas with younger alluvium, Class E (soft soil) can occur. The only way to confirm is with a VS30 measurement, usually via MASW or downhole seismic testing.
How is the soil profile measured for amplification studies?
We use a combination of MASW (Multichannel Analysis of Surface Waves) for 2D shear-wave velocity profiles, downhole seismic logging in a cased borehole to confirm VS30, and SPT borings to classify soil types and obtain index properties. The field data is then input into 1D or 2D ground response models.
What is the difference between site class and amplification factor?
Site class (A through F) is a category based on average VS30 and soil profile characteristics, defined in ASCE 7. The amplification factor (e.g., Fa for short periods, Fv for long periods) is a numerical multiplier applied to the bedrock ground motion to account for soil effects. A seismic amplification analysis calculates both site class and the actual amplification factors specific to your Riverside site.
