A warehouse expansion near the 91 freeway hit a buried storage tank a few years ago. That stop-work order cost the developer weeks. A GPR survey in Riverside would have mapped that tank in hours. Ground Penetrating Radar sends electromagnetic pulses into the ground and records reflections from buried objects, changes in soil density, and underground structures. Unlike excavation, the method is non-destructive and fast. For sites with clay-rich alluvium common in the Riverside basin, the signal penetration drops, so the survey team adjusts antenna frequency on the spot. When the target is a shallow utility or a rebar mat, 400 MHz antennas work. For deeper voids or abandoned foundations, lower frequencies are used. Before drilling or trenching, the GPR survey in Riverside gives the contractor a clear picture of what lies beneath.
In Riverside's variable alluvium, GPR detects buried tanks, voids, and utilities without a single shovel of excavation.
Method and coverage
Riverside sits on alluvial fans from the San Bernardino Mountains. The soil profile changes fast between the downtown flats and the hills near Box Springs. That mix of cobbles, sand, and clay affects how radar waves travel. In clay-heavy zones, the signal attenuates quickly, so the survey team uses dual-frequency antennas and post-processing filters. The method is non-invasive and works on asphalt, concrete, and bare ground. A typical scan covers utilities, rebar, post-tension cables, and underground storage tanks. When the site has known fill or demolition debris, the GPR survey in Riverside complements a calicatas exploratorias to correlate radar anomalies with physical layers. This combination reduces the risk of missing a deep void or a buried foundation. The entire process takes hours, not days.

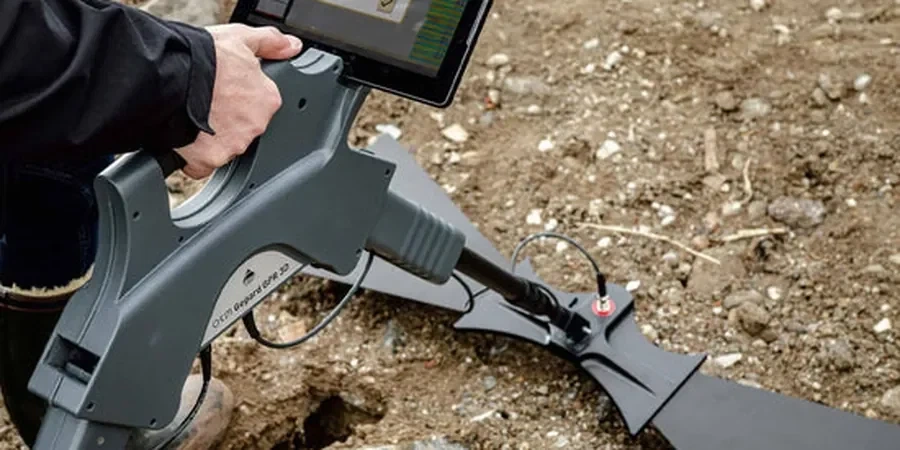

Technical reference image — Riverside
Regional considerations
Sites near the Santa Ana River have deep sand and gravel, where GPR reaches 6 meters. Sites in the downtown clay belt lose signal after 2 meters. That difference matters. If a contractor assumes deep penetration everywhere, they may miss a utility at 3 m depth in the clay zone. The risk is real: nicking a gas line or hitting an old septic system stops the job. A proper GPR survey in Riverside accounts for soil type, antenna selection, and grid spacing. The survey report marks each anomaly with estimated depth and confidence level.
Map buried electrical, gas, water, and communication lines before any excavation. The survey covers a defined grid and marks anomalies on the surface with paint.
02
Void and Cavity Detection
Identify subsidence voids, sinkholes, or erosion cavities under slabs and pavement. Common in Riverside after heavy rain cycles on old fill soils.
03
Concrete Scanning
Locate rebar, post-tension cables, and conduits inside existing slabs. Used for core drilling, saw cutting, or structural modifications without hitting reinforcement.
Depth depends on soil type. In sandy/gravel areas near the river, up to 6 meters. In clay-rich zones downtown, 2 to 3 meters maximum. The survey team selects antenna frequency based on the target depth and local soil conditions.
Does GPR work on wet or saturated ground?
Wet clay absorbs radar energy quickly, reducing depth. Wet sand or gravel still allows 3–4 meters. The survey report notes any moisture limitations and recommends re-survey after drier conditions if needed.
Can GPR distinguish between a utility line and a tree root?
Sometimes, but not always. Both produce hyperbolic reflections. Shape, continuity, and depth help differentiate. A trained analyst identifies likely utilities vs. roots. When ambiguity remains, the report flags it for potholing.
What is the typical cost of a GPR survey in Riverside?
The cost ranges between US$1,090 and US$9,430 depending on site area, grid density, antenna configuration, and reporting detail. A small slab scan for rebar location may cost toward the lower end, while a full-acre utility survey reaches the upper range.
