A common oversight we see among contractors in Riverside is assuming that any granular fill will work for an MSE wall. The alluvial sands and silts from the Santa Ana River terraces often lack the necessary friction angle or have excessive fines, leading to bulging or internal instability within a few years. Proper MSE wall design starts with site-specific soil characterization; otherwise, you are gambling with long-term performance. Before specifying reinforcement, we always run a full index testing suite including granulometría to confirm the backfill meets AASHTO gradation requirements. Without that data, the whole system is on shaky ground.
In Riverside's variable alluvial soils, MSE wall performance depends entirely on backfill quality and proper drainage at the interface with natural ground.
Method and coverage
Riverside's growth since the citrus boom of the early 1900s pushed development onto alluvial fans and ancient river channels, creating a mosaic of soil conditions under the same street grid. Mechanically stabilized earth walls here must contend with variable moisture regimes from semi-arid summers to El Niño winters that can saturate the drainage layer. Our design methodology follows AASHTO LRFD Bridge Design Specifications, 9th Edition, with particular attention to internal stability under seismic loading per ASCE 7-22. The table below summarizes typical parameters for MSE wall design in Riverside conditions.

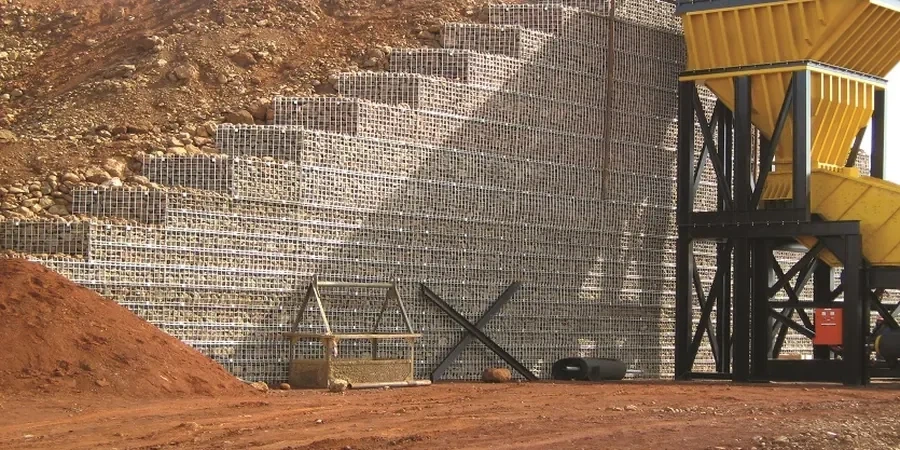

Technical reference image — Riverside
Regional considerations
The contrast between Riverside's dry heat and the occasional intense Pacific storm creates a challenging moisture cycle for MSE walls. When prolonged rain saturates the retained soil, pore pressures build behind the reinforced zone, potentially triggering external sliding or overturning. We have seen walls in the Arlington Heights area fail because the drainage blanket was undersized for a 50-year storm event. In Riverside, the risk is not seismic alone — it is the combination of poor drainage and the expansive clays found in the older terrace deposits that can heave the wall face. A proper diseño de muros MSE must account for both transient and permanent groundwater conditions.
Boreholes to 6-10 m depth, SPT sampling, direct shear and triaxial testing on backfill candidates, and groundwater monitoring. We deliver design parameters including friction angle, unit weight, and seismic site class per ASCE 7.
02
MSE Wall Design & Internal Stability Analysis
Full design package including reinforcement layout, pullout resistance calculations, external stability checks (sliding, overturning, bearing), and drainage design. We use limit equilibrium software calibrated to Riverside's soil conditions.
What soil types in Riverside are best suited for MSE wall backfill?
Granular soils with less than 15% fines passing the No. 200 sieve and a friction angle above 32 degrees perform best. We typically recommend clean sands from the Riverside alluvial fans or imported crushed aggregate. Silty sands from the Santa Ana River floodplain require treatment or rejection.
How does seismic loading affect MSE wall design in Riverside?
Riverside is in Seismic Design Category D per ASCE 7-22, so walls over 6 m height require a pseudo-static analysis with horizontal acceleration coefficients of 0.15g to 0.22g. The reinforced length must be increased by 10-20% compared to static conditions to prevent excessive displacement.
What is the typical cost range for an MSE wall design study in Riverside?
A complete geotechnical investigation and MSE wall design for a typical project in Riverside ranges between US$1.350 and US$5.150, depending on wall height, length, and subsurface variability. This includes borings, lab testing, and a sealed design report.
How long does an MSE wall last in Riverside's climate?
With proper design and drainage, MSE walls in Riverside have a service life exceeding 75 years. Galvanized steel reinforcements can corrode if drainage is neglected, while geogrids are affected by UV exposure during construction. Long-term performance depends on maintaining the drainage system and preventing backfill saturation.
