A 6-story apartment complex near the 91 freeway in Riverside hit a 40-foot layer of soft clay. The geotechnical engineer needed to accelerate consolidation before foundation work. That is where prefabricated vertical drain (PVD) design becomes essential. The team installed wick drains on a triangular grid to cut drainage paths from 40 feet down to 4 feet. Each drain connects to a sand blanket that vents pore water horizontally. The design reduced the wait time from 18 months to barely 5. Before installing PVDs, engineers often run a [MASW survey](/masw-vs30/) to map the soft layer thickness across the site. They also check the soil index properties to confirm the clay is young and compressible enough for this method to work well.
In Riverside, a properly designed PVD grid can cut consolidation time from 18 months to under 5 months in 40-foot soft clay deposits.
Method and coverage
The equipment for PVD installation in Riverside is a track-mounted rig with a steel mandrel. The mandrel pushes a prefabricated geocomposite drain into the ground. Each drain is roughly 4 inches wide and 0.2 inches thick. It contains a plastic core wrapped in non-woven geotextile filter. The rig reaches depths of up to 60 feet in the alluvial clays typical of the Riverside basin. Spacing between drains ranges from 3 to 8 feet depending on the target degree of consolidation. The contractor typically uses a square or triangular pattern. Installation rate averages 1 drain every 2 minutes in soft ground. The team monitors mandrel penetration force to avoid damaging the drain core. If the clay contains thin sand lenses, they combine PVD with preload embankments to save time. Each drain is cut flush with the working platform and connected to a horizontal drainage layer.

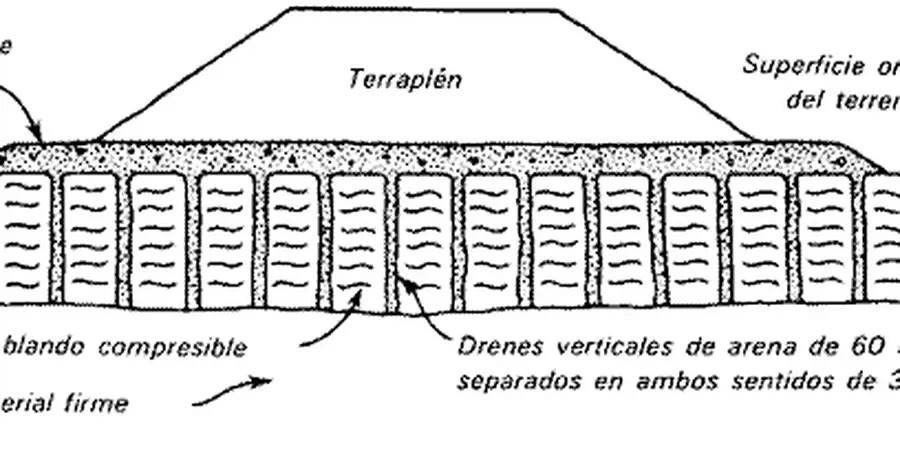

Technical reference image — Riverside
Regional considerations
The biggest risk in Riverside is the presence of thin sand lenses within the clay profile. These lenses create preferential flow paths that short-circuit the vertical drains. The result is uneven consolidation and differential settlement. Another risk is smear zone development around the mandrel. In sensitive clays, the disturbed zone can reduce horizontal permeability by 60%. That increases the required drain spacing. The team mitigates this by using a smaller mandrel and by performing in-situ permeability tests before finalizing the grid layout. A third risk is buckling of the drain core during installation in very soft clays. Using a reinforced core avoids this problem.
How deep can prefabricated vertical drains be installed in Riverside?
In Riverside, PVDs are typically installed to depths of 50 to 60 feet. The limit is set by the mandrel stiffness and the rig's pushing capacity. In very soft clays, depths beyond 60 feet can cause core buckling.
How much does a PVD design study cost in Riverside?
A full PVD design study including site investigation, lab testing, and numerical modeling ranges from US$810 to US$2,820. The price depends on the number of boreholes, depth of drains, and complexity of the soil profile.
What is the typical drain spacing for a 90% degree of consolidation?
For a 5-month schedule in Riverside clay, spacing is usually 4 to 6 feet on a triangular grid. The exact spacing is computed from Barron's radial consolidation theory using the measured horizontal coefficient of consolidation.
Can PVDs be used in Riverside's alluvial fan deposits?
Yes, but only if the fan deposit contains thick, uniform clay layers. If the deposit has gravels or cobbles, the mandrel will be damaged and the drain core will tear. A pre-design geophysical survey helps identify suitable zones.
