Riverside, sitting at an elevation of 827 feet along the Santa Ana River, sees a unique mix of alluvial soils and decomposed granite that challenge any earthwork project. Getting the geotextile specification right here means matching fabric properties to this specific ground — a misstep can lead to clogged drainage layers or punctured reinforcement sheets within the first rainy season. We work alongside project teams to define the exact tensile strength, permittivity, and grab elongation values needed, referencing ASTM D4632 for grab strength and ASTM D4491 for water flow. Many local grading plans also call for geoceldas in steep slope areas, where the geotextile acts as a separation layer beneath the cell system. Our geotextile specification service covers everything from temporary silt fences to permanent woven stabilization fabrics, all tailored to Riverside's arid climate and occasional flash flood events.
Matching the geotextile's AOS to the local soil's D₈₅ is the single most common mistake we correct in Riverside.
Method and coverage
One thing we see often in Riverside projects is that contractors bring a single geotextile class for every application — a non-woven needle-punched fabric meant for drainage gets used under a roadway, and then it ruts within months. To avoid that, our specification process starts by classifying the function: separation, filtration, drainage, or erosion control. For separation beneath aggregate base courses, we typically specify a woven monofilament geotextile with an AOS (Apparent Opening Size) between 0.30 and 0.60 mm per ASTM D4751. When filtration is the goal, we lean toward non-woven fabrics with a permittivity above 0.05 sec⁻¹. We also check the subgrade CBR value — if it's below 3, a higher grab strength (above 900 N) is mandatory. Before finalizing the specification, we often recommend a resistividad eléctrica SEV survey to map subsurface moisture zones that could affect long-term fabric performance in Riverside's variable alluvial fans.

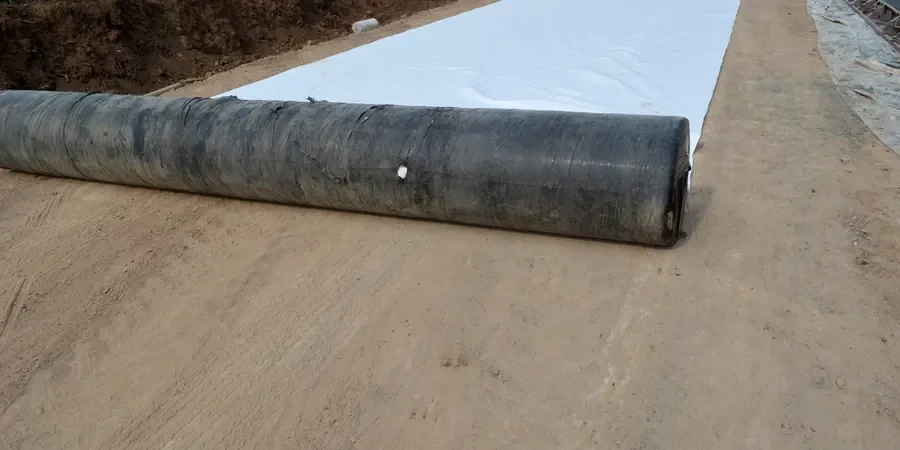

Technical reference image — Riverside
Regional considerations
When the specification is off, the consequences show up fast. A geotextile that's too open lets fine Riverside silt migrate upward into the aggregate, turning a drainage layer into a mud dam. Too tight, and water builds up behind retaining walls or below pavement sections, causing hydrostatic pressure that can blow out a slope. We've seen projects where a cheap, non-certified fabric tore during installation because the grab strength was half of what the design assumed. That's why our specification always includes a minimum grab strength requirement tied to the installation stress — typically 800 N for woven fabrics under aggregate placement. We also check the seam strength per ASTM D4884, especially for long runs along the Santa Ana River channel, where continuous geotextile sheets are deployed for bank protection.
For new subdivisions and arterial roads in Riverside, we specify woven monofilament geotextiles beneath the aggregate base to prevent subgrade pumping and extend pavement life. We calculate the required grab strength based on construction traffic, and we verify that the AOS matches the local soil's D85 (typically 0.30 to 0.50 mm for the sandy loam common in the area).
02
Erosion Control and Channel Lining Specifications
Along the Santa Ana River and its tributaries, we specify high-strength woven geotextiles for bank protection and temporary rolled erosion control blankets (RECPs) for slope stabilization. Our documents include UV exposure limits (ASTM D4355) and anchoring details, ensuring the geotextile withstands Riverside's intense summer sun and occasional storm flows.
What geotextile properties are most important for Riverside soils?
The two critical parameters are the Apparent Opening Size (AOS) and permittivity. Riverside's alluvial soils have a D85 that ranges from 0.15 mm to 0.70 mm depending on the specific site. We match the AOS to that D85 to prevent clogging. For filtration applications, permittivity should be above 0.05 sec⁻¹ to allow adequate water flow through the fabric.
How much does a geotextile specification service cost in Riverside?
For a typical project, the specification service ranges from US$450 to US$1.150. This includes on-site soil assessment, fabric property analysis per ASTM standards, and a written specification document ready for the project manual. Larger developments or multiple test sections may cost more, but the initial range covers most single-lot or small subdivision work.
Do you help with geotextile installation QA/QC?
Yes. We can provide field inspection during geotextile installation to verify overlap widths (typically 0.3 m for woven, 0.5 m for non-woven), seam strength per ASTM D4884, and anchor trench depth. We also check that the fabric is not overstretched or damaged by construction equipment. This QA/QC step is key for warranty compliance on Riverside public works projects.
What ASTM standards govern geotextile specification?
The main standards we use are ASTM D4632 for grab strength, ASTM D4491 for permittivity, ASTM D4751 for AOS, ASTM D4355 for UV resistance, and ASTM D6241 for CBR puncture resistance. For projects referencing the AASHTO M288 standard, we also check the fabric class (Class 1, 2, or 3) based on the survivability requirements.
