Riverside sits on deep alluvial deposits from the Santa Ana River. The soil profile shifts from loose sands near the river to denser gravels further south. Many contractors assume a simple cement grout works everywhere. That is not the case here. We see projects where water flow through sandy layers washed out the grout before it set. A proper grouting design must account for Riverside's variable permeability and groundwater conditions. We always start with a field permeability test to map the soil's response. That data drives the mix design and injection pressure. Without it you risk wasting material on a solution that does not hold. Our team has handled grouting in Riverside for years. We know which zones need chemical grouts and where cementitious blends perform better.
A proper grouting design must account for Riverside's variable permeability and groundwater conditions. Without field data, you risk wasting material on a solution that does not hold.
Method and coverage
A common mistake is ordering a standard grout recipe from a supplier without site-specific testing. In Riverside the alluvial soils can have permeability differences of two orders of magnitude within 50 feet. One batch does not fit all. We design each grouting program around three core steps. First we run a pumping test to measure the soil's acceptance rate. Then we adjust the water-cement ratio or add chemical modifiers to control gel time. Finally we monitor injection pressure and volume in real time. This is where experience with local geology matters. For projects with strict settlement limits we often combine grouting with compaction grouting to densify loose zones before injecting. The goal is always the same: create a uniform, low-permeability mass that stops water flow and improves ground strength.

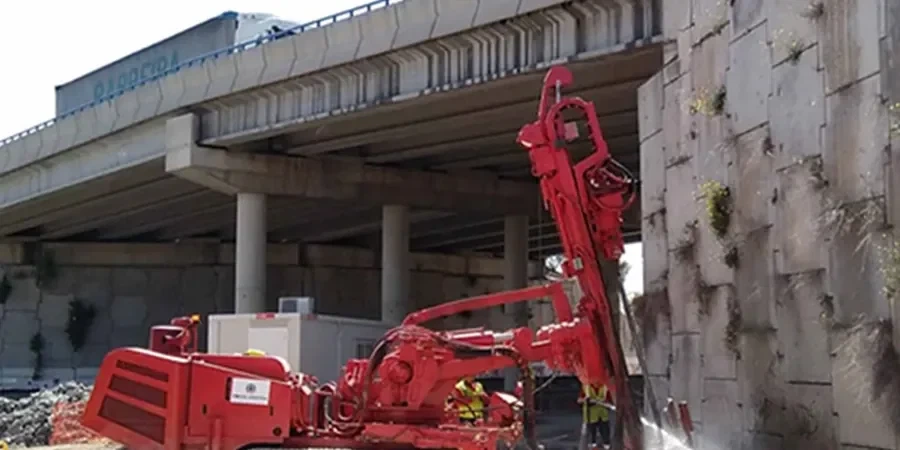

Technical reference image — Riverside
Regional considerations
A warehouse expansion near Riverside's downtown hit groundwater at 8 feet. The contractor pumped cement grout without testing. Water flow displaced the fresh mix into a storm drain. The job shut down for two weeks while engineers re-evaluated. That scenario repeats more often than it should. High groundwater and loose sands create a perfect environment for grout washout. The real risk is not just wasted material. It is the structural void left behind. If the grout does not set properly you get a weaker soil than before. In Riverside's seismic zone that could mean differential settlement during an earthquake. Our grouting design prevents that by matching the grout's viscosity and gel time to the in-situ flow conditions.
Cementitious, chemical, or polyurethane depending on soil and water conditions
Water-Cement Ratio
0.5:1 to 2:1 adjusted per field pumping test results
Injection Pressure
10 to 50 psi for Riverside alluvium
Gel Time
30 seconds to 10 minutes for chemical grouts
Permeability Target
< 10⁻⁵ cm/s after treatment
Bleeding Limit
Less than 5% after 2 hours per ASTM C940
Complementary services
01
Permeation Grouting Design
For Riverside's sandy alluvium, we design low-viscosity chemical grouts that penetrate fine pores. We select the grout type based on grain size distribution and groundwater chemistry. Injection is done at low pressures to avoid fracturing the soil.
02
Compaction Grouting Design
When loose zones are too thick for permeation alone, we design a stiff mortar that displaces and densifies the soil. This method works well for Riverside sites with deep sand layers. We control injection volume per stage to prevent heave.
03
Void Filling and Curtain Grouting
For underground voids or to cut off water flow, we design a curtain grout pattern. We calculate hole spacing and injection sequence based on the soil's radius of influence. This is common near Riverside's older infrastructure where buried utilities leave gaps.
Standards that apply
ASTM D5092 (standard practice for grouting design and field control), ASCE Grouting Committee guidelines for permeation grouting, IBC Chapter 18 (soils and foundations, applicable to ground improvement)
Q&A
What is the difference between permeation grouting and compaction grouting?
Permeation grouting uses low-viscosity fluids that flow into the soil pores without displacing the soil structure. It is used to reduce permeability and increase strength in sands. Compaction grouting uses a stiff mortar that displaces the soil, densifying it. In Riverside's alluvial soils, we often use both methods in sequence: permeation for the finer zones and compaction for looser pockets.
How much does grouting design cost in Riverside?
A full grouting design package including field testing, mix design, and injection plan typically ranges from US$1.120 to US$4.060. The final cost depends on the number of injection points, depth of treatment, and the type of grout required. For smaller projects with simple conditions the lower end applies.
What site data do you need to start a grouting design?
We need a soil profile from boreholes or test pits showing grain size distribution, groundwater depth, and permeability. At a minimum we require a grain size curve and a field pumping test. For sensitive projects we also run a chemical analysis of the groundwater to check for aggressive ions that could degrade the grout.
Can grouting fix settlement in existing buildings?
Yes, but the approach depends on the cause. If settlement is from loose soil beneath the foundation, compaction grouting can lift and stabilize the structure. If it is from water flow washing out fines, permeation grouting can seal the soil. In either case we first install monitoring points to measure movement during injection. We do not recommend grouting without a geotechnical evaluation of the root cause.
