Many construction teams in Riverside assume standard shallow foundations work everywhere. That assumption fails quickly near the San Jacinto fault zone. The alluvial soils beneath the city's older terraces behave nothing like the young, loose deposits along the Santa Ana River. Without proper seismic foundation design, a building can suffer differential settlement during a moderate event. The 1918 San Jacinto earthquake demonstrated how variable ground response can be across just a few blocks. A thorough geotechnical investigation should start with MASW-Vs30 profiling to classify the site per ASCE 7, then proceed to site-specific response analysis. Ignoring these steps means designing blindly for ground motions that may double due to basin effects.
Riverside's alluvial fan deposits can amplify ground motion by a factor of two compared to nearby rock sites. Site-specific response analysis is non-negotiable.
Method and coverage
The contrast between the Box Springs Mountains foothills and the Riverside-Arlington channel floodplain is instructive. On the hard granitic slopes near Canyon Crest, site class B or C dominates, and seismic foundation design can rely on simplified response spectra. Two miles south, in the La Sierra area, young alluvial fans produce site class D or even E conditions. Here, ground motion amplification can exceed 2.0, making deep foundations or ground improvement essential. The city's seismic hazard is driven by the San Jacinto fault (M7.3 scenario) and the Cucamonga fault to the north. To properly characterize liquefaction potential in the saturated sands near the river, we combine SPT blow counts with cyclic resistance ratios from the NCEER 2001 method. A liquefaction assessment pinpoints where bearing capacity loss could occur, guiding foundation depth and type selection.

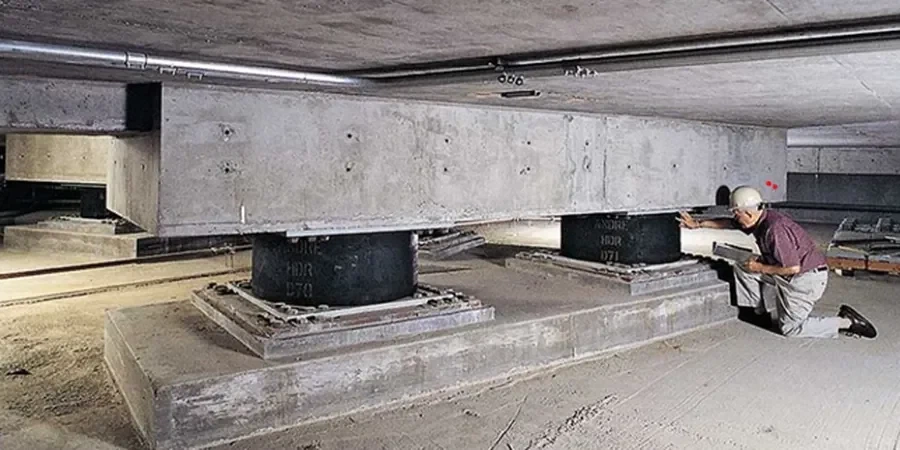

Technical reference image — Riverside
Regional considerations
In Riverside, we often see projects that skip the site-specific response spectrum and simply adopt the IBC map values. That is a mistake. The maps give a general hazard, but they do not capture the basin-edge effects that amplify long-period motions in the downtown corridor. A building designed with generic parameters may experience torsional response and unexpected drift. The real risk is not just the fault rupture — it is the soil column's natural period aligning with the structure's fundamental period. That resonance can double story drifts. Seismic foundation design must include a site response analysis (SHAKE-type or equivalent linear) to evaluate that interaction. Otherwise, the foundation system becomes the weak link in the lateral load path.
100 – 250 kPa (shallow footings on competent alluvium)
Design ground motion (MCE)
0.55g – 0.75g (PGA at 2% in 50 years)
Minimum foundation embedment
1.2 m below finished grade (frost depth + scour)
Complementary services
01
Site-Specific Response Spectrum Analysis
Develop design spectra using probabilistic and deterministic seismic hazard analysis. We run equivalent-linear and nonlinear site response models for Riverside's alluvial profiles. Output includes acceleration time histories and spectral accelerations at multiple damping ratios.
02
Liquefaction Hazard Assessment
Evaluate cyclic resistance using SPT, CPT, and Vs30 data. We apply Youd & Idriss 2001 and Boulanger & Idriss 2014 methods for Riverside's Holocene sands. Deliverables include LPI maps, settlement estimates, and mitigation recommendations.
03
Foundation System Design for Lateral Loads
Design piles, drilled shafts, and mat foundations to resist seismic overturning and sliding. We consider kinematic and inertial interaction effects. Foundation capacities are checked against displacement-based performance criteria per ASCE 7.
04
Ground Improvement for Seismic Resilience
Specify deep soil mixing, stone columns, or dynamic compaction to reduce liquefaction potential and improve bearing capacity. We provide settlement and strength gain verification through post-treatment testing in Riverside's variable alluvium.
Standards that apply
ASCE 7-22 (Minimum Design Loads and Associated Criteria for Buildings), California Building Code (CBC) 2022 – Chapter 18 (Soils and Foundations), ASTM D4428/D4428M-14 (Crosshole Seismic Testing), NCEER 2001 (Youd & Idriss) – Liquefaction Evaluation Procedures
Q&A
What is the difference between NEHRP site class and the IBC site classification?
NEHRP site class and IBC site classification are essentially the same system, defined by average vs30/" data-interlink="1">shear wave velocity in the top 30 meters (Vs30). Both use five categories (A through F) based on Vs30 values. The IBC adopts the NEHRP provisions directly in Chapter 16. For Riverside, most alluvial sites fall into class D (360-760 ft/s) or C (760-1500 ft/s). We determine the exact class via MASW or crosshole seismic testing.
How much does a seismic foundation design study cost in Riverside?
A complete seismic foundation design study including site response analysis, liquefaction assessment, and foundation recommendations ranges between US$1.230 and US$3.770. The final cost depends on project complexity, number of borings, and whether a site-specific response spectrum is required. For a typical two-story commercial building on class D soil, expect the lower end of that range.
When is a site-specific response spectrum required instead of using the IBC map values?
A site-specific response spectrum is required for Risk Category IV structures (hospitals, emergency facilities) in Riverside, and for any building over 10 stories on site class D or E soil. It is also recommended when the building period exceeds 0.5 seconds on deep alluvium, because the IBC maps underestimate long-period amplification in Riverside's basin. The CBC 2022 mandates it for structures with fundamental period greater than 1.0 second on site class E.
What soil conditions in Riverside create the highest seismic risk?
The highest seismic risk in Riverside occurs in the loose, saturated sands and silts of the Santa Ana River floodplain and the Arlington Channel. These deposits are prone to liquefaction and lateral spreading during a major San Jacinto fault earthquake. Additionally, the young alluvial fans west of the 215 freeway can produce significant ground motion amplification. Older, well-graded alluvium on the east side near the Box Springs Mountains generally has lower risk.
Do I need a deep foundation for a small residential project in Riverside?
Not always. For single-family homes on competent alluvium (site class C or D with blow counts above 15), a continuous footing with proper reinforcement and tie beams may suffice. However, if the site has liquefaction potential or lies within 500 meters of the San Jacinto fault trace, deep foundations (piles or drilled shafts) are strongly recommended. The CBC requires a geotechnical report for any new construction in Seismic Design Category D or higher, which covers most of Riverside.
