Riverside's development accelerated after the arrival of the Santa Fe Railway in the 1870s, transforming the Santa Ana River floodplain into citrus groves and later into residential and commercial districts. This rapid urbanization concealed a complex subsurface: deep alluvial deposits of sand, silt, and clay overlying granitic bedrock at variable depths. For any deep foundation project in Riverside, distinguishing between pile skin friction and end bearing is not an academic exercise but a requirement for safe and economical design. The interaction between the soil shaft resistance and the tip resistance governs axial capacity, and misinterpreting the contribution of each can lead to under-designed foundations or excessive construction costs.
In Riverside's mixed alluvium, shaft resistance can contribute 60 to 80 percent of total pile capacity, making skin friction the dominant design parameter.
Method and coverage
The analytical process begins with a calibrated static load test or PDA test, but the real insight comes from stratigraphic profiling. In Riverside, we use a combination of SPT borings and laboratory strength tests to assign unit skin friction values to each soil layer. The equipment includes a 140-kN hydraulic reaction frame and telltale strain gauges embedded along the pile shaft.
Unit skin friction is derived from undrained shear strength for cohesive layers (alpha method) and effective stress parameters for granular layers (beta method).
End bearing resistance is calculated from Terzaghi's bearing capacity factors, adjusted for pile geometry and installation method.
Before finalizing the design, we cross-reference these values with local case histories and perform a sensitivity analysis using the asentamiento diferencial model to evaluate tolerable settlement limits. This layered approach ensures that neither shaft nor tip capacity is overestimated.

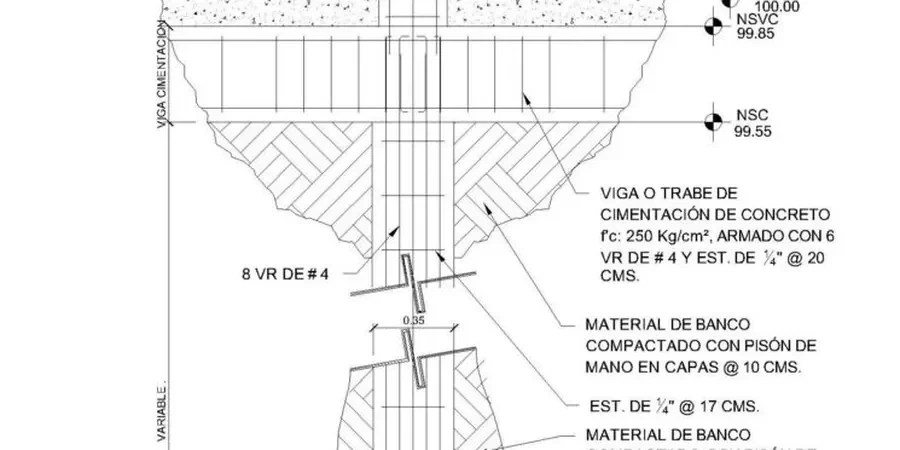

Technical reference image — Riverside
Regional considerations
Riverside sits at an elevation of approximately 260 m above sea level, but the subsurface conditions are far from uniform. The 1918 San Jacinto earthquake (magnitude 6.8) caused widespread liquefaction in the Santa Ana River valley, and similar deposits exist beneath many current development sites. If skin friction is overestimated without verifying the soil's response to cyclic loading, a pile group could lose shaft resistance during a seismic event, shifting the load to the tip and potentially exceeding its end bearing capacity. This is why we always couple the pile analysis with a site-specific seismic hazard evaluation that includes the respuesta sismica of the soil column.
Full-scale static load tests with telltale strain gauges to separate shaft and tip resistance. Results are analyzed using Davisson's offset method to determine ultimate capacity.
02
PDA and CAPWAP Analysis
High-strain dynamic testing using a Pile Driving Analyzer (PDA) and CAPWAP signal matching to estimate skin friction distribution along the pile shaft.
03
Seismic Pile Response
Evaluation of skin friction degradation under cyclic loading using p-y curves and t-z springs. Includes liquefaction triggering assessment for the bearing stratum.
04
Optimization of Pile Foundation Design
Parametric studies varying pile length, diameter, and installation method to minimize cost while satisfying settlement and structural load requirements.
What is the typical range for skin friction in Riverside's alluvial soils?
In Riverside's alluvial sands and silty clays, unit skin friction typically ranges from 30 kPa to 80 kPa for granular layers (beta method) and 20 kPa to 60 kPa for cohesive layers (alpha method). These values are calibrated against local static load test data.
How does end bearing capacity differ between weathered granite and alluvium?
Weathered granite in Riverside can provide end bearing capacities of 5 to 15 MPa, whereas dense alluvial sand and gravel typically offer 2 to 5 MPa. The transition zone between alluvium and bedrock is often irregular, requiring careful stratigraphic interpretation.
When should I rely on skin friction versus end bearing for pile design?
In deep alluvial profiles common in Riverside, skin friction governs for piles extending 15 to 30 m. End bearing becomes dominant only when piles terminate on or penetrate into competent bedrock. A combined analysis is always recommended to optimize foundation cost.
How much does a pile skin friction vs. end bearing analysis cost in Riverside?
The cost for a comprehensive analysis including field testing and laboratory interpretation typically ranges between US$1,170 and US$3,120, depending on the number of test piles, instrumentation requirements, and site accessibility. A detailed quote is provided after initial consultation.
