The drilling rig used for soil liquefaction analysis in Riverside is typically a medium-duty track-mounted unit equipped with automatic hammers and electronic sensors. It advances a 100 mm split-barrel sampler following ASTM D1586 procedures to obtain blow counts at 1.5 m intervals. The rig operates across Riverside's alluvial fans and older terrace deposits, often reaching refusal in the dense sands and gravels below 25 m. For critical infrastructure projects along the Santa Ana River corridor, the team supplements conventional SPT with downhole shear-wave velocity measurements using a MASW survey to capture Vs30 profiles that directly feed into liquefaction triggering models. Each borehole log records soil type, fines content, and groundwater depth — data essential for the cyclic stress ratio calculation.
Riverside's variable groundwater and proximity to active faults demand site-specific cyclic resistance curves — regional correlations alone are insufficient for reliable hazard assessment.
Method and coverage
A practical observation that only a local technician would make: Riverside's groundwater table fluctuates seasonally by as much as 4 m, so a single dry-season boring can underestimate liquefaction hazard for wet years. Our analysis follows the NCEER 2001 workshop procedures, applying the Youd-Idriss magnitude scaling factors and the Idriss-Boulanger correction for fines content. For sites near the San Jacinto fault zone, we also require cyclic direct simple shear tests on undisturbed samples to calibrate the CRR curve. When dealing with loose silty sands beneath the old river channels, we combine the liquefaction assessment with a stability of slopes evaluation to check for lateral spreading potential. The methodology includes:
Magnitude-weighted CSR calculation using PGA from USGS seismic hazard deaggregation
Correction for overburden stress (Kσ) and static shear stress (Kα)
Post-liquefaction residual strength estimation via the Olson-Stark correlation
Equivalent clean-sand (N1)60cs normalization per ASTM D2487 classification

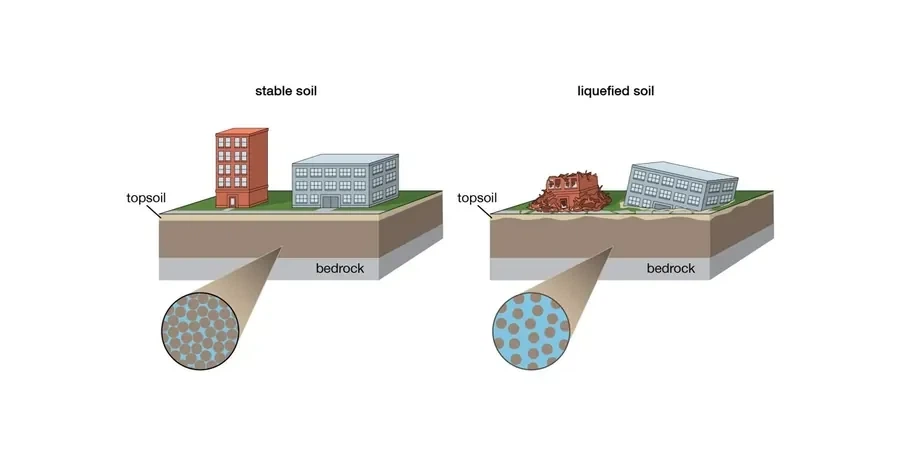

Technical reference image — Riverside
Regional considerations
Riverside lies within the Peninsular Ranges geomorphic province, underlain by Pleistocene alluvial fan deposits and Holocene floodplain sediments along the Santa Ana River. The shallow groundwater table in these low-lying areas, combined with a design-basis earthquake of Mw 7.0–7.5 from the San Jacinto and Elsinore faults, creates a moderate to high liquefaction susceptibility for saturated loose sands. In the downtown and Arlington Heights districts, older terrace deposits with higher density and cementation show lower risk, but recent channel sediments near the 91 Freeway require careful evaluation of cyclic softening in silty clays. A lateral spread displacement of 15–30 cm is possible for level ground scenarios, and deeper seated flow failures could affect bridge foundations if untreated.
SPT-based CSR/CRR analysis following NCEER methodology, including fines correction, magnitude scaling, and factor-of-safety contour maps for multiple earthquake scenarios.
02
Vs30 and Shear Wave Profiling
MASW and downhole seismic surveys to classify site class per ASCE 7, with direct input to cyclic stress calculations for liquefaction triggering models.
03
Cyclic Laboratory Testing
Cyclic direct simple shear and cyclic triaxial tests on undisturbed samples to measure CRR, pore pressure generation, and post-cyclic strength loss under representative loading.
04
Lateral Spread & Settlement Analysis
Post-liquefaction deformation estimates using Newmark sliding block and volumetric strain methods, with recommendations for ground improvement or deep foundations.
Standards that apply
ASCE/SEI 7-22 Section 11.4 – Site classification and seismic design categories, Youd et al. (2001) NCEER summary report – SPT-based liquefaction triggering, ASTM D1586-18 – Standard test method for standard penetration test (SPT), IBC 2021 Chapter 20 – Soils and foundations seismic provisions
Q&A
What is the difference between liquefaction triggering and post-liquefaction analysis?
Liquefaction triggering determines whether a soil layer will reach initial liquefaction under a given earthquake load (factor of safety < 1.0). Post-liquefaction analysis then evaluates the consequences: residual strength, lateral displacement, and vertical settlement. In Riverside, both stages are required because the same loose sand layer that triggers may also flow or settle differently depending on fines content and confining stress.
How much does a soil liquefaction analysis cost in Riverside?
A standard liquefaction study for a single building site including two SPT borings to 20 m, vs30/" data-interlink="1">shear wave velocity profiling, and laboratory testing typically ranges between US$2.730 and US$4.360. Costs vary with depth, number of borings, and whether cyclic laboratory tests are required. For large subdivisions or bridge projects, the per-borehole rate drops but total scope increases.
Which Riverside soil types are most susceptible to liquefaction?
Loose to medium-dense Holocene sands and silty sands with less than 20% fines, particularly beneath the Santa Ana River floodplain and in recent alluvial fans near the 60/91/215 interchange. Older Pleistocene terrace deposits in the hillsides generally have higher blow counts (N60 > 25) and are not susceptible unless groundwater rises significantly during wet winters.
Do I need a liquefaction study for a single-family home in Riverside?
The California Building Code (CBC) requires a geotechnical investigation for all new construction in Seismic Design Category D or higher. Most of Riverside falls into SDC D, so a liquefaction evaluation is mandatory for residential slabs-on-grade and shallow foundations. For additions or remodels, the requirement depends on the addition size and proximity to existing structures.
