Riverside sits at an elevation of 827 feet along the Santa Ana River, exposing it to alluvial deposits with variable consistency and a shallow groundwater table that fluctuates with seasonal rains. Designing a retaining wall in such conditions demands careful evaluation of lateral earth pressures, hydrostatic uplift, and seismic loading per IBC 2021. Before finalizing any wall geometry, the team here performs detailed soil classification and consolidation testing to determine active and passive pressure coefficients, ensuring the wall resists overturning and sliding under both static and dynamic conditions. Integrating a tomografía sísmica early in the investigation helps map subsurface anomalies that could compromise wall stability, while a concurrent ensayo SPT provides direct N-values for bearing capacity calculations. The result is a design that accounts for Riverside's unique combination of coarse sands and silty clays, avoiding costly overdesign while maintaining a safety factor above 1.5 for sliding and 2.0 for overturning.
Riverside's alluvial soils demand wall designs that integrate drainage as a structural element, not an afterthought, to prevent hydrostatic failure under seismic loading.
Method and coverage
What we often observe in Riverside is that retaining walls fail not from lack of strength but from inadequate drainage and poor backfill compaction behind the wall. The technical approach here prioritizes three interconnected steps: first, a site-specific geotechnical investigation to classify the retained soils according to USCS and measure their shear strength parameters through direct shear or triaxial tests; second, a seepage analysis to design a drainage system that prevents hydrostatic pressure build-up behind the wall face; and third, a structural check against the seismic coefficients defined in ASCE 7-22 for Site Class D (stiff soil) typical of the region.
We verify the wall's external stability (overturning, sliding, bearing capacity) using limit equilibrium methods with factored loads.
We assess internal stability for reinforced walls, checking pullout resistance and tensile overstress in the geosynthetic layers.
For taller walls exceeding 15 feet, a monitoreo de taludes program is recommended during and after construction to detect early movements, and the design reports always reference the AASHTO LRFD Bridge Design Specifications for modular block and cantilever walls.

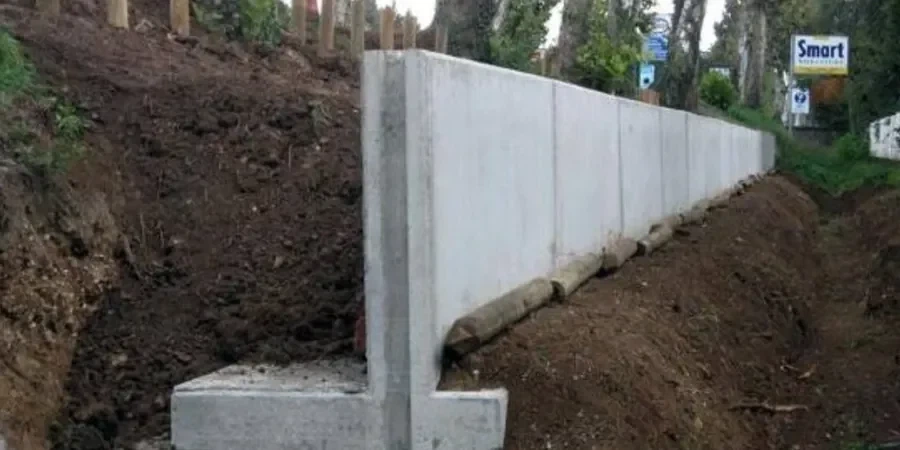

Technical reference image — Riverside
Regional considerations
A significant portion of Riverside's residential and commercial developments border the Santa Ana River floodplain, where the soil profile consists of loose sands and soft clays extending to depths of 8 to 12 meters. These materials exhibit low shear strength and high compressibility, making them prone to liquefaction under strong ground motion. If a retaining wall is designed without accounting for excess pore pressure generation during a seismic event, the wall can experience catastrophic lateral displacement or complete overturning. The local geotechnical practice mitigates this by specifying drainage composites and, where necessary, installing deep soil mixing or stone columns behind the wall to densify the loose matrix and reduce liquefaction potential.
Structural design of reinforced concrete cantilever walls and gravity walls using limit equilibrium analysis. The service includes soil parameter determination via laboratory testing (direct shear, triaxial), sliding and overturning checks, and reinforcement detailing per ACI 318-19. Suitable for walls up to 12 feet in height with granular or cohesive backfill.
02
Mechanically Stabilized Earth (MSE) Wall Design
Design of MSE walls with geosynthetic or metallic reinforcement for heights exceeding 12 feet. The analysis covers internal stability (pullout, tensile overstress), external stability (bearing, sliding, overturning), and facing connection capacity. A drainage blanket and perforated pipe system are integrated into every design to manage the shallow groundwater typical of Riverside's floodplain areas.
Standards that apply
AASHTO LRFD Bridge Design Specifications (9th Edition, 2020), ASCE 7-22 Minimum Design Loads for Buildings and Other Structures, IBC 2021 Chapter 18 – Soils and Foundations, ASTM D1586-18 Standard Test Method for Standard Penetration Test (SPT), ASTM D4318-17 Standard Test Methods for Liquid Limit, Plastic Limit, and Plasticity Index of Soils
Q&A
What soil parameters are most critical for retaining wall design in Riverside?
The friction angle (phi) and cohesion of the retained soil, along with the unit weight and groundwater table elevation, are the primary inputs. For Riverside's alluvial soils, we typically measure phi between 28 and 34 degrees for sands and cohesion between 0 and 5 kPa for clays. The groundwater table must be confirmed through piezometer readings to calculate hydrostatic pressures correctly.
How does seismic loading affect retaining wall design in this region?
Riverside falls within Seismic Design Category D under IBC 2021, requiring the wall to withstand a peak ground acceleration of roughly 0.58g. The design must incorporate a pseudo-static seismic coefficient (usually 0.5 of the peak acceleration) applied to the active wedge behind the wall. Walls in loose saturated sands also require a liquefaction assessment per NCEER procedures, which may dictate deeper foundations or ground improvement.
What is the typical cost range for a retaining wall design and geotechnical report in Riverside?
For a standard residential or small commercial wall up to 10 feet high, the design and associated geotechnical investigation typically ranges from US$1,070 to US$4,650. The final cost depends on the number of soil borings, laboratory tests required, and complexity of the wall geometry. Complex MSE walls with multiple tiers or seismic retrofit work may exceed this range.
What drainage measures are recommended behind retaining walls in Riverside?
A perforated pipe drainage system wrapped in geotextile and surrounded by 1-inch clean gravel is standard practice. The pipe must outfall through the wall face or be connected to a storm drain. For walls exceeding 8 feet in height, a drainage composite sheet or prefabricated vertical drain is added to dissipate pore pressures quickly. Backfill should consist of free-draining granular material (less than 5% fines) compacted to 95% Proctor density.
