Riverside sits at an elevation of 827 feet above sea level, but beneath the surface the story is different. The Santa Ana River floodplain has deposited layers of alluvial sands, silts, and clays that can shift under load. For any tunnel project in this area, we start with a thorough geotechnical analysis for soft soil tunnels in Riverside. The variable groundwater table, often encountered between 10 and 25 feet deep, adds complexity. Before advancing to detailed design, we recommend combining borings with a [MASW survey](/masw-vs30/) to map shear-wave velocity profiles across the alignment. This gives us a reliable baseline for predicting how the ground will behave during excavation.
In Riverside's alluvial deposits, the interaction between groundwater and discontinuous clay lenses is the single biggest variable affecting tunnel stability.
Method and coverage
The dominant soil profile in Riverside consists of young alluvium with interbedded gravel layers and occasional paleochannels. These heterogeneous conditions demand a testing program that captures both strength and deformability. Our typical approach for a geotechnical analysis for soft soil tunnels in Riverside includes SPT borings at 50-foot spacing, piezometer installation, and laboratory triaxial testing under undrained conditions. We also apply the CPT with pore pressure measurements to identify thin weak layers that could cause localized instability. The key parameters we extract are undrained shear strength, modulus of elasticity, and the coefficient of lateral earth pressure. These directly inform the tunnel face support pressure and lining design.

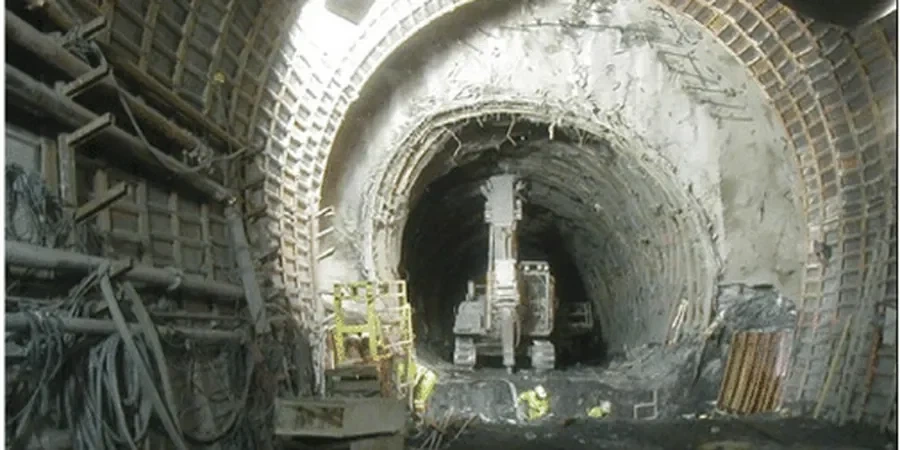

Technical reference image — Riverside
Regional considerations
In Riverside, the biggest operational risk during tunnel excavation is a sudden loss of face support due to a groundwater inflow event. The alluvial deposits contain discontinuous sand lenses that can act as preferential flow paths. If these are not detected during the geotechnical analysis for soft soil tunnels in Riverside, a blow-in or raveling failure becomes possible. We mitigate this by specifying continuous piezocone profiling and installing standpipe piezometers at critical intervals. The data allows us to adjust the slurry pressure or compressed air support in real time, keeping the heading stable and the crew safe.
Hollow-stem auger borings with SPT, undisturbed tube sampling, and CPTu soundings to characterize soil layering and groundwater conditions along the tunnel alignment.
02
Laboratory Strength & Deformation Testing
Consolidated undrained triaxial tests, direct simple shear, and oedometer tests to determine parameters for numerical modeling of tunnel face stability and ground settlement.
03
Seismic Hazard & Liquefaction Screening
Site-specific response analysis using shear-wave velocity measurements and cyclic resistance curves to evaluate the potential for liquefaction-induced flotation of shallow tunnels.
Standards that apply
ASTM D1586-18 (Standard Test Method for SPT), ASTM D5778-20 (Standard Test Method for Electronic Friction Cone and Piezocone Penetration Testing of Soils), FHWA-NHI-14-007 (Technical Manual for Design and Construction of Road Tunnels), ASCE 7-22 (Minimum Design Loads and Associated Criteria for Buildings and Other Structures)
Q&A
What is the first step in a geotechnical analysis for soft soil tunnels in Riverside?
The first step is a desktop study of existing boring logs and geologic maps, followed by a site reconnaissance to identify surface drainage and existing utilities. We then design a field investigation program with boring and CPT locations spaced to capture the variability of the Santa Ana River alluvium.
How much does a geotechnical analysis for soft soil tunnels in Riverside typically cost?
Cost depends on tunnel length, depth, and the level of laboratory testing required. For a typical small-diameter utility tunnel, the investigation and analysis range between US$3,710 and US$16,780. A larger transit tunnel with extensive laboratory work and numerical modeling can exceed this range.
What design parameters are most critical for tunnel lining in Riverside's soft soils?
The undrained shear strength of the clay layers and the horizontal modulus of the sand lenses drive the lining design. We also pay close attention to the initial stress ratio (K0), as Riverside's alluvium often exhibits slightly overconsolidated behavior that affects ground movement predictions.
How do you handle groundwater control during the investigation?
We install vibrating-wire piezometers at multiple depths to monitor long-term pore pressure trends. For the investigation itself, we use hollow-stem augers with sealed casing to prevent artesian flow. If high-permeability layers are encountered, we switch to mud rotary drilling to maintain borehole stability.
