Roads in the Wood Streets area of Riverside typically rest on older alluvial terraces with relatively competent sands and gravels, while streets near the Santa Ana River floodplain encounter soft silts and high groundwater. That contrast makes flexible pavement design in Riverside a site-specific exercise rather than a one-size-fits-all solution. We integrate local borehole logs, traffic projections, and subgrade CBR values to determine the structural number required for each section. Before committing to a final thickness, we often cross-check with a CBR vial to validate the subgrade reaction modulus under soaked conditions, and we review geotextiles when separation layers are needed between base and subgrade. The goal is a pavement that balances initial cost with long-term service life across Riverside's varied geology.
A dry base course in Riverside can pass inspection yet fail after the first heavy rain — drained design is non-negotiable.
Method and coverage
Riverside experiences a semi-arid climate with hot summers and mild winters, but the real challenge for pavement design comes from infrequent but intense storm events that can saturate the subgrade in hours. Unlike coastal cities where drainage is a constant concern, here the risk is concentrated: a dry base course may pass inspection, yet fail after the first heavy rain. That is why flexible pavement design in Riverside must incorporate a drained structural section even when the native soil appears stable. We run soaked CBR tests at 96-hour saturation, apply the AASHTO 1993 empirical method, and verify drainage coefficients using the densidad cono arena procedure on compacted lifts. Additionally, when the project crosses variable fill zones, we recommend a georradar GPR survey to map hidden soft pockets before setting the pavement cross-section.

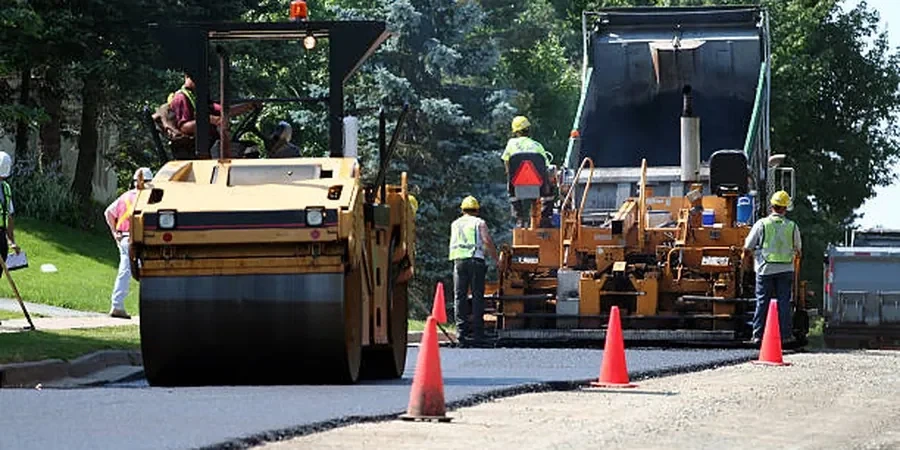

Technical reference image — Riverside
Regional considerations
A common error among local contractors in Riverside is assuming that a high dry-density test guarantees pavement performance. They skip the soaked CBR, seal the base course, and pave — only to see cracking and rutting after the first wet winter. The subgrade in areas like the Arlington Heights or near Fairmount Park can lose 60% of its bearing capacity when moisture rises. Without a flexible pavement design that accounts for saturation, the structural number is effectively overestimated. We always require at least one soaked CBR per soil unit and, when the plasticity index exceeds 15, we incorporate a lime-treated subgrade layer to stabilize volume changes.
Borehole drilling, soil sampling, and soaked CBR testing per ASTM D1883 at multiple moisture conditions. We classify soils using the AASHTO M 145 system and produce site-specific design CBR curves for each pavement layer.
02
Pavement Structural Design & QC
Determination of structural number (SN) based on traffic data, subgrade strength, and reliability level. Includes field density verification via sand cone or nuclear gauge, and asphalt core testing when required.
Standards that apply
AASHTO 1993 Guide for Design of Pavement Structures, ASTM D1883-21 (CBR test), ASTM D698-12 (Standard Proctor compaction), ASTM D4318-17 (Atterberg limits for subgrade soil)
Q&A
What is the typical cost range for a flexible pavement design study in Riverside?
For a standard road or parking lot project, the geotechnical investigation and design report typically ranges between $1,500 and $4,930 depending on the number of borings, traffic analysis complexity, and whether soaked CBR testing is included. We provide a detailed quote after reviewing your site layout.
How does Riverside's alluvial soil affect the required pavement thickness?
Alluvial soils near the Santa Ana River channel often have CBR values below 5%, requiring thicker base courses or a stabilized subgrade to achieve the structural number. In contrast, older terrace deposits in the foothills can support thinner pavements. We adjust the design using site-specific CBR data rather than generic county maps.
Can you design a flexible pavement for a private access road with heavy truck traffic?
Yes. We consider equivalent single-axle loads (ESALs) from delivery trucks and fire apparatus. For industrial or warehouse access roads in Riverside, we often recommend an increased asphalt thickness or a full-depth asphalt section to prevent fatigue cracking under repeated heavy loads.
What is the difference between flexible and rigid pavement design, and which is better for Riverside?
Flexible pavements distribute loads through layered asphalt and base courses, while rigid pavements use a concrete slab with higher flexural strength. In Riverside's expansive clay areas, flexible pavements are often preferred because they can tolerate minor differential movements without cracking, though they require proper drainage and subgrade treatment to avoid rutting.
