A common mistake we see in Riverside projects is treating soft or expansive soil with compaction alone. Many contractors assume that raising the water content or adding more passes with a roller will solve bearing problems. It won't. In Riverside, the alluvial clays and silty sands along the Santa Ana River floodplain often require chemical modification to reach the design CBR or unconfined compressive strength. Without proper stabilization, pavements crack and slabs heave within two years. We have treated hundreds of cubic yards of Riverside subgrade using quicklime, hydrated lime, or Portland cement mixed at depths of 12 to 24 inches. The key is to run a proper mix design before mobilizing equipment. The soil's natural plasticity index and sulfate content dictate the additive rate. We follow ASTM D6276 for lime-soil pH testing and ASTM D1633 for cement-treated soil strength. Ignoring this step leads to under-treatment and rework. For projects on very soft ground, we also recommend combining stabilization with precarga y sobrecarga to accelerate consolidation before the pavement section is placed.
Without proper stabilization, Riverside pavements crack and slabs heave within two years. We follow ASTM D6276 and ASTM D1633 for every batch.
Method and coverage
In Riverside, we often see that the native soil varies dramatically within the same lot. A site near the Riverside Municipal Airport may have clay with a plasticity index of 35, while a parcel on the east side near Box Springs Mountain has sandy lean clay with PI of 15. That is why we never apply a blanket additive rate. We sample at a grid of one test pit per 2,500 square feet, then run Atterberg limits, natural moisture, and sulfate content. If sulfates exceed 1,000 ppm, we use lime instead of cement to avoid ettringite formation. For cement stabilization, we target a dosage of 4% to 8% by dry weight, verified by unconfined compressive strength tests on 7-day and 28-day cured specimens. The field work includes spreading the additive with a calibrated spreader truck, mixing to full depth with a pulverizer, then compacting to 95% of modified Proctor density. Curing involves a light water spray and rolling seal. We also use geoceldas on top of stabilized layers for extra load distribution on weak subgrades.

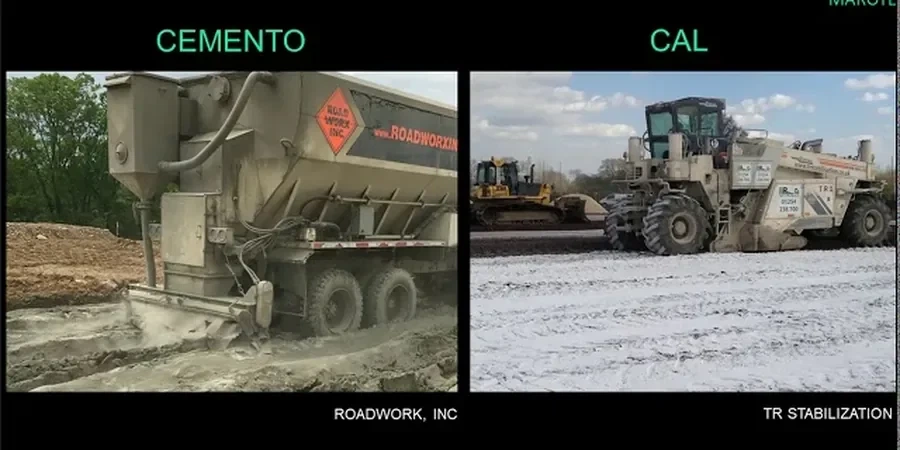

Technical reference image — Riverside
Regional considerations
Riverside sits at an elevation of 827 feet, but the valley floor where most development occurs consists of deep alluvial deposits. These soils are prone to collapse when wetted and to significant volume change with moisture fluctuations. A residential subdivision we worked on near the 91 freeway had 18 inches of wetted clay that would have caused differential settlement of 2 to 3 inches under the slab. We treated the entire pad with 6% lime to a depth of 18 inches. After 28 days, the CBR jumped from 3 to 18. The risk of ignoring stabilization in Riverside is not just cracks — it is structural damage to foundations, tilted retaining walls, and failed pavement sections. We have seen entire parking lots replaced because the subgrade was never chemically modified.
Quicklime (CaO), hydrated lime (Ca(OH)2), or Portland cement Type I/II
Typical dosage range
4% – 8% by dry weight of soil
Mixing depth
12 – 24 inches (300 – 600 mm)
Target unconfined compressive strength (7 days)
≥ 150 psi (1.03 MPa) for lime; ≥ 200 psi (1.38 MPa) for cement
Sulfate threshold
≤ 1,000 ppm for cement; lime acceptable up to 5,000 ppm
Field density requirement
95% of modified Proctor (ASTM D1557)
Complementary services
01
Mix Design & Laboratory Testing
We determine the optimal additive type and dosage based on PI, sulfates, and target strength. Tests include Atterberg limits, pH, UCS, and durability.
02
Field Application & Mixing
Our crews use calibrated spreaders and single-shaft pulverizers to distribute and mix additive to full design depth. We verify mixing uniformity with in-situ density tests.
03
Compaction & Curing
After mixing, we compact the treated layer to 95% of modified Proctor and apply a moisture seal. Curing lasts 7 days for light traffic or 28 days for full structural load.
04
Quality Control & Verification
We perform field density tests, proof rolling, and collect undisturbed samples for UCS at 7 and 28 days. A final report documents all results for the engineer.
Standards that apply
ASTM D6276 – Standard Test Method for Using pH to Estimate the Soil-Lime Proportion Requirement for Soil Stabilization, ASTM D1633 – Standard Test Methods for Compressive Strength of Molded Soil-Cement Cylinders, ASTM D1557 – Standard Test Methods for Laboratory Compaction Characteristics of Soil Using Modified Effort (56,000 ft-lbf/ft3), Caltrans Standard Specifications Section 27 – Lime Treatment and Cement Treatment
Q&A
What is the difference between lime and cement stabilization for Riverside soils?
Lime works best on high-plasticity clays (PI > 20) and soils with sulfate content above 1,000 ppm. Cement is more effective on silty sands and lean clays (PI < 15). Lime reduces plasticity and swell; cement adds early strength. We choose based on the soil's natural properties and the project's strength requirements.
How deep can you treat soil with lime or cement stabilization?
Typical treatment depth is 12 to 24 inches using a pulverizer. For deeper stabilization, we use a reclaimer or rotary mixer that can reach 36 inches. Depths beyond 36 inches require alternative methods like deep soil mixing.
How much does lime and cement stabilization cost in Riverside?
For a typical Riverside project, the cost ranges between US$880 and US$2,820 per 1,000 square feet, depending on additive type, dosage, depth, and site access. This includes labor, materials, and quality control testing.
How long does the treated soil need to cure before construction can continue?
Lime-treated soil requires a minimum of 7 days of curing before traffic loading. Cement-treated soil can handle light construction equipment after 3 days, but full structural loading should wait 28 days. We monitor moisture and temperature during curing to ensure proper hydration.
Can I use lime stabilization on a site with high groundwater in Riverside?
Lime stabilization works best when the water table is at least 3 feet below the treatment depth. If groundwater is higher, the mixing process becomes difficult and the lime may not hydrate properly. In such cases, we recommend installing temporary dewatering wells or using cement instead of lime.
