Riverside sits on deep alluvial deposits from the Santa Ana River, with clay layers extending over 30 meters in the downtown basin and coarser sands near the box springs. This contrast in soil stiffness directly controls how a raft or mat foundation distributes building loads across the footprint. For projects in the Arlington Heights area, the underlying silty clays often require a stiffer mat section to limit differential movement. We approach every raft/mat foundation design in Riverside by correlating local soil profiles with bearing capacity estimates from ASTM D1586 SPT blow counts and plasticity indices from Atterberg limits. The goal is simple: match the foundation stiffness to the actual ground behavior rather than relying on regional defaults.
A mat foundation in Riverside must bridge variable alluvial layers — stiff clays near the surface can mask deeper loose sands that control long-term settlement.
Method and coverage
A mat foundation in Riverside behaves differently depending on whether you build near the 91 freeway corridor or closer to the San Bernardino foothills. On the valley floor, deep clay layers can consolidate under sustained load, so we combine the raft design with a precarga/sobrecarga program to accelerate settlement before casting the slab. In contrast, sites along the Santa Ana River floodplain have loose sands at shallow depth; here the mat must be designed to span across potential liquefaction lenses identified through SPT-based NCEER methods. Key parameters we evaluate include:
Allowable net bearing pressure under eccentric loads
Modulus of subgrade reaction for slab thickening
Differential settlement limits per IBC Table 1604.3
Uplift resistance in areas with high groundwater after heavy winter rains
This site-specific approach keeps the raft/mat foundation design efficient without over-engineering the concrete section.

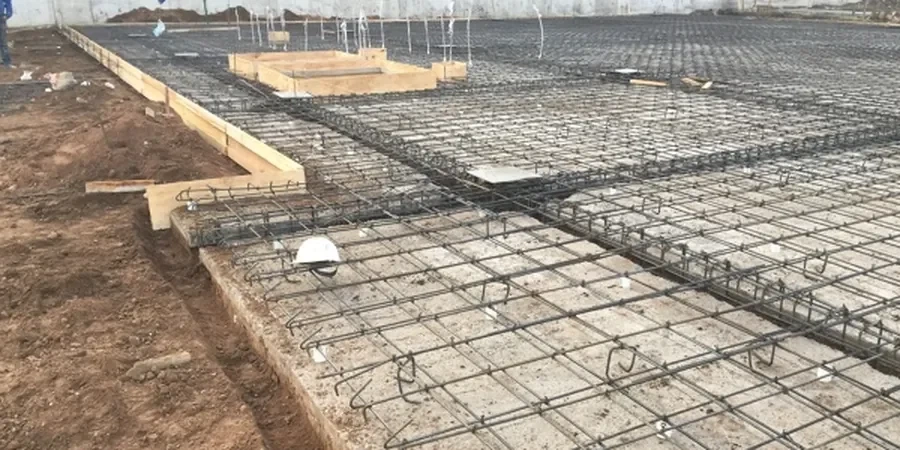

Technical reference image — Riverside
Regional considerations
The alluvial stratigraphy under Riverside is far from uniform. A single borehole might show stiff lean clay from 0 to 6 meters, then loose silty sand from 6 to 12 meters. If the raft/mat foundation design assumes uniform clay across the entire footprint, the loose sand zone can cause excessive settlement under concentrated loads — especially near column locations. We have seen cases where ignoring the sand lens led to cracking in the mat edge. The risk is compounded during wet El Niño years when the water table rises and reduces effective stress in those sand layers. A thorough SPT program with boreholes spaced at 15-meter intervals is essential to map these transitions before finalizing the mat thickness and reinforcement layout.
Boreholes to 30 m depth with SPT at 1.5 m intervals, soil classification per ASTM D2487, and groundwater monitoring over two wet seasons.
02
Settlement & Bearing Capacity Analysis
Immediate and consolidation settlement calculations using elastic theory and Terzaghi's method, calibrated with local Riverside consolidation test data.
03
Reinforced Mat Design Review
Coordination with structural engineers to optimize mat thickness, reinforcement layout, and construction joints based on subgrade reaction estimates.
Standards that apply
IBC 2021 Chapter 18 (Soils and Foundations), ASCE 7-22 Section 12.13 (Seismic Design for Nonbuilding Structures), ASTM D1586-18 (Standard Test Method for SPT), ACI 318-19 (Building Code Requirements for Structural Concrete)
Q&A
What is the typical cost range for a raft foundation design study in Riverside?
The cost varies with project size and soil complexity, but a typical geotechnical investigation plus foundation recommendation for a 500 m² mat runs between US$ 980 and US$ 4,130 in Riverside. This includes boreholes, SPT testing, lab classification, and a written report with bearing capacity and settlement estimates.
How deep should boreholes be for a mat foundation in Riverside alluvium?
We recommend boreholes to at least 1.5 times the mat width or 30 m, whichever is less. Riverside's alluvial sequence often includes compressible clay layers down to 20 m, so shallow borings can miss critical settlement zones. For a 20 m wide mat, boreholes to 30 m depth are standard.
Does a raft foundation need special reinforcement for seismic loading in Riverside?
Yes. Riverside is in Seismic Design Category D per IBC 2021. The mat must be designed with continuous top and bottom reinforcement, with additional corner reinforcement near perimeter columns. We also check for potential liquefaction in sandy layers below the mat and may recommend ground improvement if the factor of safety falls below 1.1.
