Road Embankment Design in Riverside – Geotechnical Solutions

Together, we solve the challenges of tomorrow.

READ MORE →

We design road embankments in Riverside strictly following IBC 2021 and ASTM D1586-18. Riverside sits on the alluvial fans of the Santa Ana River, where loose sands and silty clays dominate the upper 10 meters. Without proper compaction and drainage, embankments here settle unevenly. Our team integrates geoceldas for lateral confinement and ensayo CBR to verify subgrade strength. Every design includes a site-specific geotechnical model that accounts for the area's seismic zone D. We do not guess. We test, model, and certify.

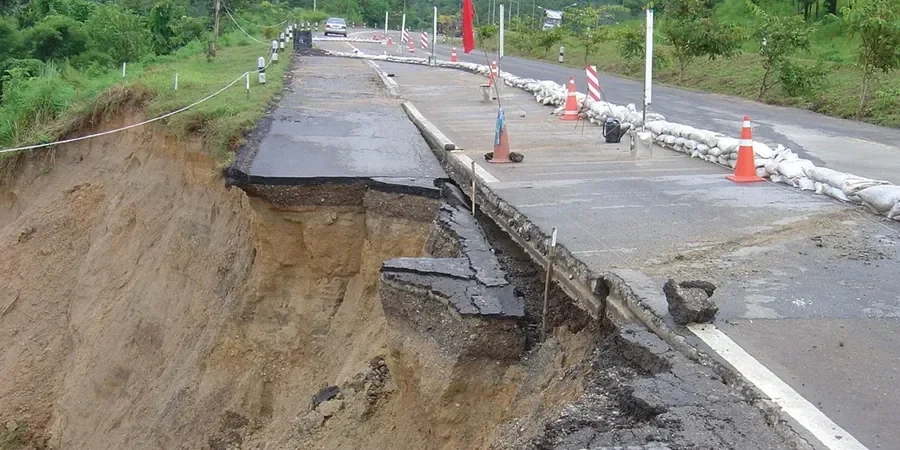

Illustrative image of Road embankment design in Riverside
Embankments on Riverside's alluvial fans require compaction control every 30 cm and drainage layers that handle seasonal saturation. One loose lift can cause a slope failure.

Method and coverage

A common mistake among contractors in Riverside is assuming that native alluvial soils can support embankment loads without treatment. They cannot. The silty sands in the Jurupa Valley area lose bearing capacity when wet. Our approach combines Proctor compaction (ASTM D698) with moisture-density curves calibrated to local borrow sources. We also run densidad cono-arena field tests to verify lift compaction in real time. For deep fills exceeding 6 meters, we recommend precarga to accelerate settlement. Key characteristics of our service:
Technical reference image — Riverside

Regional considerations

Riverside experiences hot, dry summers and a winter rainy season. The contrast matters. During dry months, the alluvial soil dries and cracks. Come winter, water infiltrates through those cracks into the embankment core. Saturation reduces shear strength. We have seen embankments in the Box Springs area fail after a single wet winter because no drainage layer was installed. Our designs include a lateral drainage blanket and a capillary break at the base. We also model the worst-case wet scenario using the 100-year rainfall record from the nearby Riverside Municipal Airport station.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering1.biz

Technical parameters

ParameterTypical value
Maximum embankment height12 m (typical fill)
Compaction requirement95% of max dry density (ASTM D698)
Side slope ratio2H:1V (standard), 3H:1V (seismic zones)
Drainage blanket thickness0.3 m of clean sand or gravel
Settlement tolerance25 mm over 3 years (service limit)

Complementary services

01

Borrow Source Evaluation

We test potential borrow pits on Riverside's eastern side. Gradation, Atterberg limits, and Proctor curves determine suitability for embankment fill.

02

Compaction Control Testing

Field density tests using the sand cone method (ASTM D1556) or nuclear gauge. We verify each lift meets the 95% compaction target.

03

Slope Stability Analysis

Limit-equilibrium models (Bishop and Spencer methods) for embankment slopes. We include seismic loading per ASCE 7-16 for Riverside's Site Class D.

04

Drainage Layer Design

We size gravel drainage blankets and edge drains to handle the 10-year, 1-hour storm event. Prevents pore pressure buildup inside the embankment.

Standards that apply

IBC 2021 – Section 1804 (excavation and fill), ASTM D698 – Standard Proctor compaction, Caltrans Highway Design Manual – Chapter 600 (embankment construction)

Q&A

What is the typical cost for road embankment design in Riverside?

The cost ranges between US$1,320 and US$3,740 depending on fill height, number of borings, and laboratory tests. Contact us for a site-specific quote.

How deep should I compact fill on my Riverside property?

Each lift should not exceed 30 cm loose thickness. Compaction must achieve at least 95% of the maximum dry density per ASTM D698. Deeper fills may require staged construction.

Do I need a drainage layer for a low embankment under 2 meters?

Yes, even low embankments benefit from a 0.3 m gravel drainage blanket. Riverside's winter rains can saturate the base and cause differential settlement.

What soil types are common for embankment fill in Riverside?

SM (silty sands) and SC (clayey sands) from the alluvial fans are most common. They compact well but require moisture control. Avoid using ML (silts) or CH (fat clays) near the surface.
