Riverside sits on a mix of young alluvium from the Santa Ana River wash and older colluvial fans from the Box Springs Mountains. The difference is stark: near the river corridor you find loose sands and silts with N-values below 10, while the eastern benchlands often yield dense gravelly sands with N-values above 40. That range matters because a foundation design that works on the bench will punch through river deposits. We run SPT borings across both settings to give you numbers you can trust. In loose zones we combine the SPT with a microzonificación sísmica study to map site class, and on the bench we often cross-check with resistividad eléctrica SEV to identify hidden gravel layers that could stop your pile driving early.
In Riverside, a single SPT boring can reveal three different soil units within 10 meters — loose sand, stiff clay, and dense gravel — each demanding a separate foundation approach.
Method and coverage
We see it all the time: a developer buys a lot near Hunter Park, assumes the soil is uniform, and hits refusal at 3 meters on an old cobble layer. That is exactly why we drill SPT borings to at least 15 meters in Riverside. The procedure follows ASTM D1586-18, using a 63.5 kg hammer dropped 0.76 m. We record blow counts every 15 cm, correct for overburden, and report N60 and N1,60. When the ground is sandy and saturated below the water table, we also test for fines content to adjust for liquefaction screening. For pavement and fill projects we pair the SPT with a CBR vial to correlate N-values with CBR for subgrade design. On sites with thick clay layers we run a veleta de campo to measure undrained shear strength directly, because the SPT alone underestimates clay consistency.

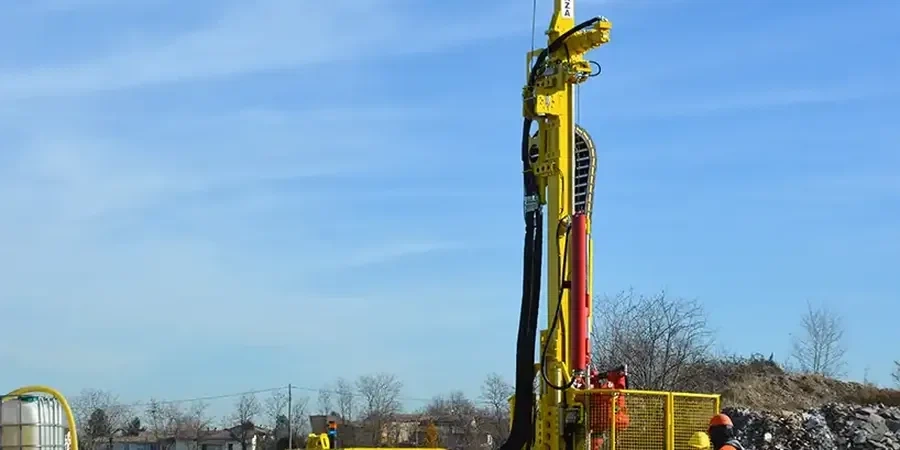

Technical reference image — Riverside
Regional considerations
ASCE 7-22 and IBC 2021 require site-specific ground motion analysis for Seismic Design Categories D, E, and F. Riverside lies entirely in SDC D or E depending on your tract. The biggest risk is liquefaction in the Santa Ana River floodplain, where loose saturated sands with N1,60 below 15 are common. We evaluate liquefaction potential using the NCEER (2001) method, correlating SPT blow counts with cyclic resistance ratio. Ignoring this step can lead to differential settlement exceeding 30 cm during a design earthquake. For existing fills we also check for collapse potential using SPT energy-corrected N-values.
30 m (limited by rod buckling above 15 m in loose sands)
Liquefaction triggering threshold (N1,60-cs)
N1,60-cs < 30 for Mw=7.5, PGA=0.4g (Seed & Idriss simplified)
Complementary services
01
Standard SPT Boring with Sampling
Continuous SPT borings to 15 m depth with split-spoon sampling at 1.5 m intervals. Includes field logs, N60 and N1,60 corrections, and soil classification per ASTM D2487. Suitable for low-rise commercial and residential projects in Riverside's alluvial basins.
02
Advanced SPT with Liquefaction Assessment
Extended SPT borings to 25 m with fines content analysis on sand layers. We compute CRR and CSR per NCEER (2001) and provide a liquefaction hazard map for your site. Ideal for schools, hospitals, and multi-story buildings in Seismic Design Category E zones near the river.
Standards that apply
ASTM D1586-18 (Standard Test Method for SPT and Split-Barrel Sampling), ASCE 7-22 (Minimum Design Loads – Chapter 11, Site Class Determination), IBC 2021 (Section 1803 – Geotechnical Investigation Requirements), Seed & Idriss (1971) Simplified Procedure for Liquefaction Evaluation
Q&A
How deep should SPT borings be in Riverside for a typical two-story house?
For a two-story house on shallow foundations we recommend SPT borings to at least 6 m, but in Riverside's river deposits we often extend to 10 m to verify that loose sands or soft clays are not underlain by a weaker layer. The IBC requires boring depth equal to the width of the loaded area or 12 m, whichever is less, for Seismic Design Category D.
What is the cost range for an SPT investigation in Riverside?
A standard SPT boring with sampling runs between US$630 and US$770 per borehole in Riverside, depending on depth, access, and mobilization distance. The range covers drilling, field logs, and N-value corrections. For sites requiring a full liquefaction assessment, add US$200 to US$400 per borehole for fines content testing.
How does the SPT compare to CPT for liquefaction evaluation in Riverside?
Both methods work, but SPT provides intact soil samples for classification and fines content, which is critical for adjusting the cyclic resistance ratio. CPT offers continuous profiles and is faster in clean sands, but in Riverside's gravelly colluvial fans the CPT cone often hits refusal before reaching target depth. We typically recommend SPT for sites with gravel or cobbles, and CPT for thick sand deposits.
Can SPT data be used for slope stability analysis in Riverside's hillside areas?
Yes, but only for cohesive soils where N-values correlate reasonably with undrained shear strength. In the Box Springs foothills, where colluvial soils interbed with fractured bedrock, we combine SPT with vs30/" data-interlink="1">shear wave velocity testing to get reliable strength profiles for slope stability. The SPT alone does not capture the stiffness contrast between soil and weathered rock.
